RightMark Audio Analyzer test report

Testing device Precision MS Full Encode-Decode
Sampling mode 24-bit, 48 kHz
Interface EMU-0404
Testing chain Full Encode Decode
RMAA Version 6.3.0



Summary

Frequency response (from 40 Hz to 15 kHz), dB
+0.16, -0.09
Very good
Noise level, dB (A)
-103.0
Excellent
Dynamic range, dB (A)
103.0
Excellent
THD, %
0.0017
Excellent
THD + Noise, dB (A)
-91.1
Very good
IMD + Noise, %
0.0034
Excellent
Stereo crosstalk, dB
-73.7
Good
IMD at 10 kHz, %
0.0032
Excellent
General performance

Very good



Stereo crosstalk

Spectrum graph


Left
Right
Crosstalk at 100 Hz, dB
-73
-71
Crosstalk at 1000 Hz, dB
-74
-72
Crosstalk at 10000 Hz, dB
-73
-71

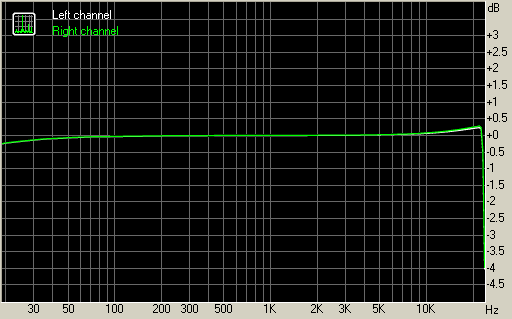

Frequency response

Spectrum graph


Left
Right
From 20 Hz to 20 kHz, dB
-0.24, +0.21
-0.23, +0.25
From 40 Hz to 15 kHz, dB
-0.10, +0.13
-0.09, +0.16

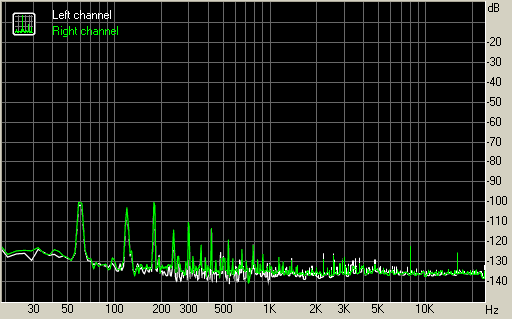

Noise level

Spectrum graph


Left
Right
RMS power, dB
-97.4
-96.5
RMS power (A-weighted), dB
-103.3
-102.7
Peak level, dB FS
-81.4
-80.6
DC offset, %
-0.0
-0.0

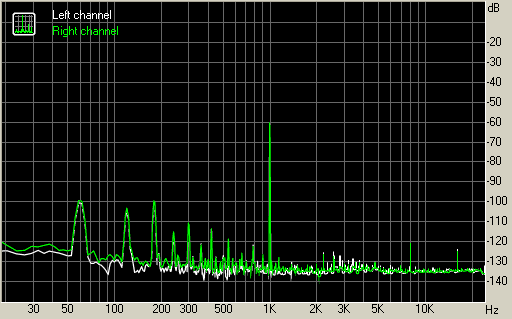

Dynamic range

Spectrum graph


Left
Right
Dynamic range, dB
+97.3
+96.4
Dynamic range (A-weighted), dB
+103.3
+102.7
DC offset, %
+0.00
+0.00

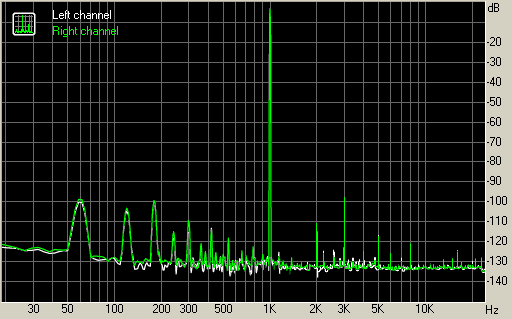

THD + Noise (at -3 dB FS)

Spectrum graph


Left
Right
THD, %
+0.0015
+0.0019
THD + Noise, %
+0.0032
+0.0037
THD + Noise (A-weighted), %
+0.0025
+0.0030

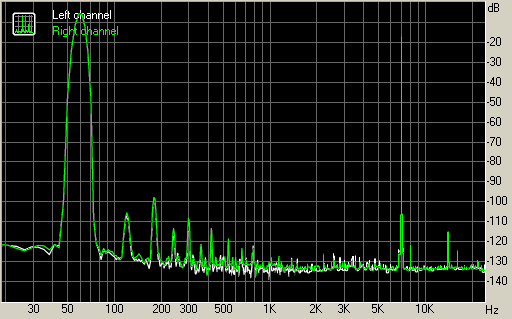

Intermodulation distortion

Spectrum graph


Left
Right
IMD + Noise, %
+0.0033
+0.0036
IMD + Noise (A-weighted), %
+0.0021
+0.0023

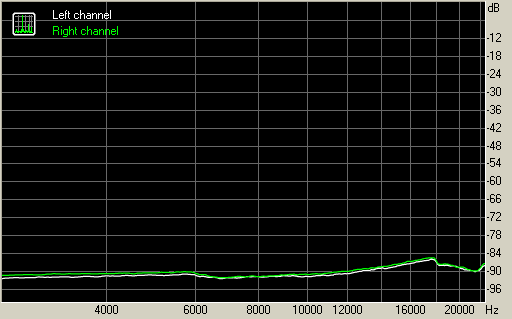

IMD (swept tones)

Spectrum graph


Left
Right
IMD + Noise at 5000 Hz,
0.0028
0.0030
IMD + Noise at 10000 Hz,
0.0026
0.0028
IMD + Noise at 15000 Hz,
0.0039
0.0042
