LRS-1 Width Controller RMAA Test Report

Testing device LRS-1 Width Control at 100%.
Sampling mode 24-bit, 48 kHz
Interface EMU-0404
Testing chain Input to Output.
RMAA Version 6.3.0



Summary

Frequency response (from 40 Hz to 15 kHz), dB
+0.13, -0.13
Very good
Noise level, dB (A)
-102.9
Excellent
Dynamic range, dB (A)
102.9
Excellent
THD, %
0.0014
Excellent
THD + Noise, dB (A)
-92.4
Very good
IMD + Noise, %
0.0034
Excellent
Stereo crosstalk, dB
-66.5
Good
IMD at 10 kHz, %
0.0030
Excellent
General performance

Very good

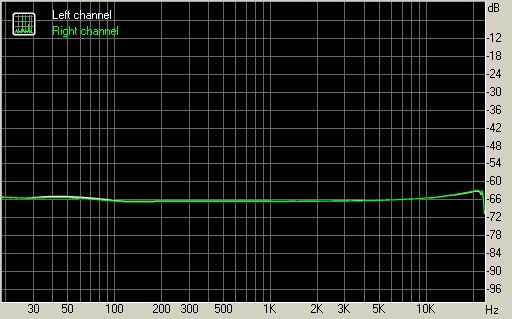

Stereo crosstalk

Spectrum graph


Left
Right
Crosstalk at 100 Hz, dB
-65
-65
Crosstalk at 1000 Hz, dB
-65
-66
Crosstalk at 10000 Hz, dB
-64
-64

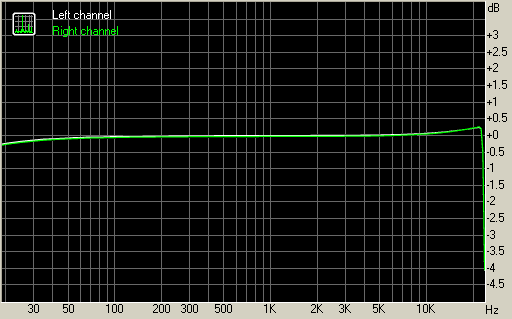

Frequency response

Spectrum graph


Left
Right
From 20 Hz to 20 kHz, dB
-0.24, +0.21
-0.27, +0.22
From 40 Hz to 15 kHz, dB
-0.10, +0.13
-0.13, +0.13

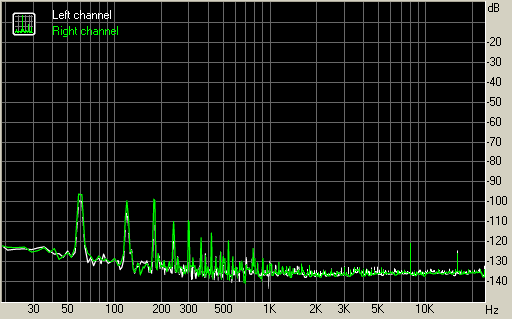

Noise level

Spectrum graph


Left
Right
RMS power, dB
-96.7
-93.8
RMS power (A-weighted), dB
-103.2
-102.5
Peak level, dB FS
-81.3
-80.6
DC offset, %
-0.0
-0.0

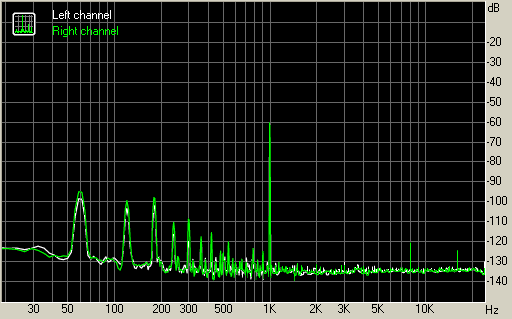

Dynamic range

Spectrum graph


Left
Right
Dynamic range, dB
+96.7
+93.7
Dynamic range (A-weighted), dB
+103.3
+102.6
DC offset, %
-0.00
-0.00

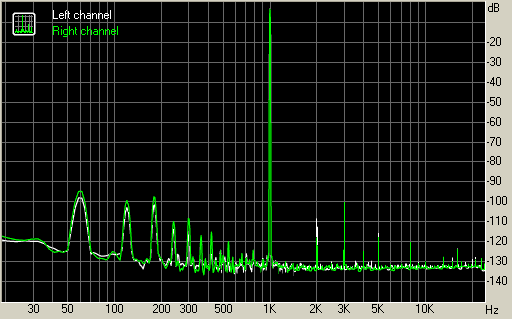

THD + Noise (at -3 dB FS)

Spectrum graph


Left
Right
THD, %
+0.0014
+0.0014
THD + Noise, %
+0.0033
+0.0044
THD + Noise (A-weighted), %
+0.0024
+0.0025

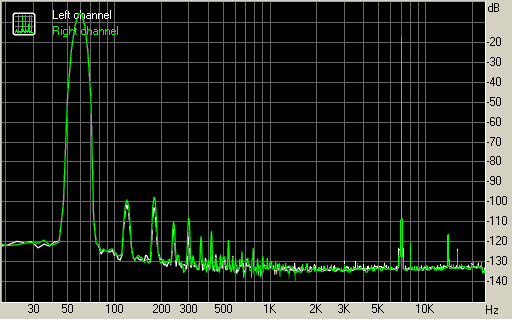

Intermodulation distortion

Spectrum graph


Left
Right
IMD + Noise, %
+0.0029
+0.0039
IMD + Noise (A-weighted), %
+0.0020
+0.0021

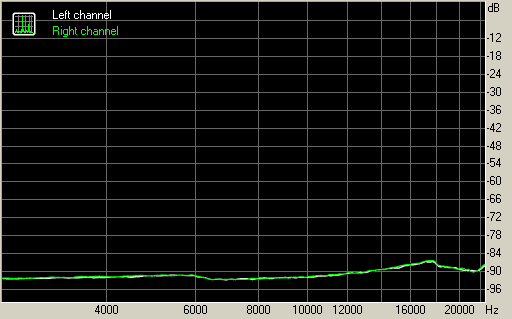

IMD (swept tones)

Spectrum graph


Left
Right
IMD + Noise at 5000 Hz,
0.0027
0.0027
IMD + Noise at 10000 Hz,
0.0025
0.0026
IMD + Noise at 15000 Hz,
0.0036
0.0038
